  • FJS-II方形玻璃钢通风机

    FJS-II方形玻璃钢通风机该系列风机采用玻璃纤维和树脂模压成型,并使用直联式铸铝外壳电机(加涂防腐涂层)组合而成。具有较强的耐腐蚀性能,具有超低噪音、耗电少、风量大、便于安装等特点。是工业厂房、各类仓库、办公室、花卉温室、家禽舍房、电镀、氧化等场合防暑降温、抽排各类废气的理想通风换气选择。输送气体温度≤60℃,相对湿度≤100%。粉尘及硬质颗粒≤100mg/m3
  • FJS-II Square FRP Fan

    The series of fans are molded by glass fiber and resin molding, and are combined with a direct connected cast aluminum shell motor (with coating coating). It has strong corrosion resistance, low noise, low power consumption, large air volume, easy to install and so on. Is the industrial workshop, warehouse, office, greenhouse flowers, poultry houses, plating, oxidation etc. sunstroke, selection of drainage ventilation of all kinds of waste gas. Conveying gas temperature are less than 60, the relative humidity is less than 100%. Dust and hard particles is less than 100mg/m3.
机 号
Model(No)
功 率
Power(Kw)
转 速
Speed(r/min)
流 量
Volume(M3/h)
外形尺寸
(mm)
8# 0.55 520 23000 1000×1000×500
9# 0.55 520 27500 1060×1060×500
10# 0.55 460 32000 1120×1120×500
12# 0.75 460 37000 1220×1220×500
13# 1.1 460 44500 1380×1380×500

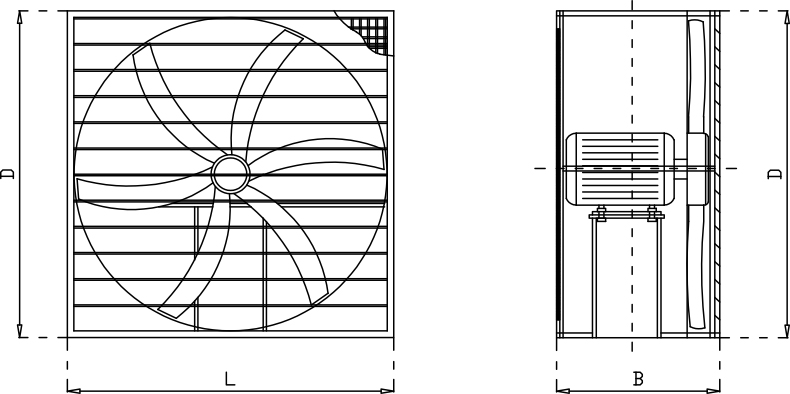

外形及安装尺寸示意图 Lnstallation size diagram

玻璃钢方形风机安装尺寸


产品为人工实物测量会有一定误差,相关数据仅作参考,以收到的实物为准。 单位Unit: mm(毫米)

机号
外形尺寸
NO L D B
8# 1000 1000 500
9# 1060 1060 500
10# 1120 1120 500
12# 1220 1220 500
13# 1380 1380 500
