  • HGF4-72型C式玻璃钢离心通风机

    HGF4-72型(C式)玻璃钢离心通风机采用采用进口乙烯基树脂(玻璃钢FRP)复合材质制作而成,它具有强度高、重量轻、耐腐蚀性能良好、不易老化、噪声低等特点,是较理想的新型防腐蚀风机,叶轮采用水冷座或油冷座经角带与电机传动。其好处是减少腐蚀电机、减速、降低电机负荷等作用,从而增加风机使用寿命。
  • HGF4-72 type C FRP centrifugal fan

    HGF4-72(C) type glass steel centrifugal fan using polyester FRP material, it has the advantages of high strength, light weight, good corrosion resistance, not easy ageing, low noise characteristics, is a new type anti-corrosion fan ideal, impeller using water or oil cooled by a seat belt angle and transmission electric machine. Its advantage is to reduce the effect of corrosion motor, decelerate, reduce motor load and so on to increase the service life of the fan.
机 号
Model(No)
功 率
Power(Kw)
转 速
Speed(r/min)
流 量
Volume(M3/h)
全 压
Pressure(Pa)
3C 2.2 2900 1050-2062 1158-387
1.1 1450 525-1031 290-97
4C 3 2900 3065-5701 1842-646
1.1 1450 1532-2851 460-162
5C 7.5 2600 8100-12960 1152-2160
2.2 1120 4500-7200 320-600
6C 15 2100 10939-16055 2490-1119
11 2000 9945-16055 2092-940
7.5 1800 8951-14449 1694-761
5.5 1600 7956-12844 1339-601
4 1450 7210-11640 1099-494
3 1250 6216-10034 817-367
7C 15 1600 10748-20009 1931-823
11 1450 9572-17820 1555-662
7.5 1250 8397-15632 1179-502
5.5 1120 7524-14006 946-403
8C 22 1600 23622-35411 2508-1170
18.5 1450 22098-33126 2195-1024
15 1400 20345-30499 1875-875
11 1250 18593-27872 1554-725
7.5 1120 16002-23988 1151-537
5.5 1000 13716-20561 846-395
10C 30 1120 32000-40000 1900-1500
18.5 1000 29000-36000 1500-1200
15 900 26000-32000 1200-1000
11 800 22000-29000 1050-800
12C 55 1000 49000-68000 1900-1800
37 900 44000-61000 1800-1400
30 800 39000-54000 1400-1200
18.5 710 35000-48000 1100-900
15 630 31000-43000 900-700
11 560 30000-38000 746-640
14C 110 1000 77785-108374 3235-2611
75 900 61993-86771 2171-1717
55 800 55105-77129 1713-1355
37 710 48906-68452 1347-1067

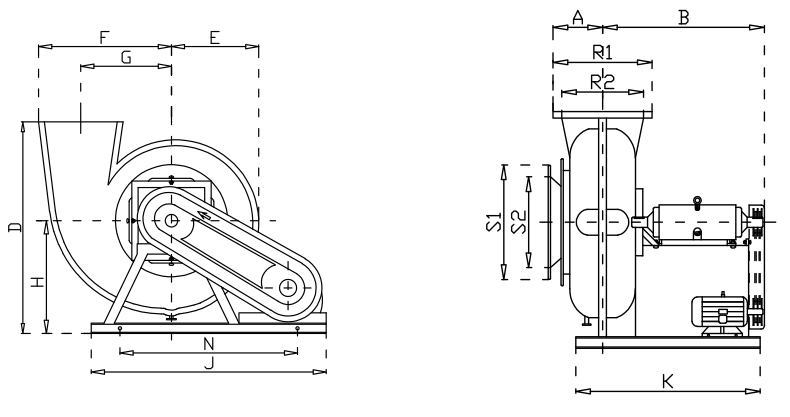

外形及安装尺寸示意图 Lnstallation size diagram
玻璃钢风机安装尺寸图

产品为人工实物测量会有一定误差,相关数据仅作参考,以收到的实物为准。 单位Unit: mm(毫米)

机 号
入风口 Air inlet 出风口 Vent 机架尺寸 Frame size 90o向本体尺寸 90degree dimension to body size
NO S1 S2 R1 R2 J N K A B C D E F G H
3C 343 243 330 243 900 700 520 120 510 320 780 250 387 222 480
4C 400 300 427 340 953 783 515 215 573 440 942 320 500 330 565
5C 500 400 505 405 953 783 513 215 585 520 1117 320 500 330 645
6C 615 500 655 530 1198 905 687 265 756 685 1342 492 785 482 730
7C 720 600 725 605 1347 1145 765 360 868 697 1448 572 843 540 815
8C 860 720 830 735 1400 1197 775 420 930 838 1685 670 1065 645 950
10C 1045 900 1000 885 1800 1503 1455 512 1127 990 2047 818 1215 703 1110
12C 1200 1080 1220 1100 2400 2100 1710 610 1370 1140 2372 968 1365 762 1255
